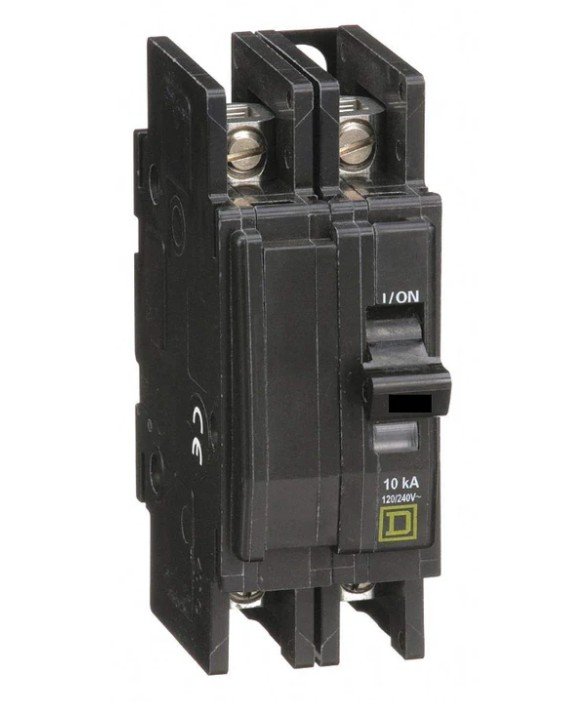

QOU280 - Square D Bolt-On 120/240 VACV 80A 2 pole circuit breaker 10kA@240V

$0.00

Part Number: QOU280
Manufacturer : Square D
Category : Circuit Breaker
Item Subcategory : Molded Case
Family : QOU Series
Type : QOU
Voltage : 120/240 VAC
Amperage : 80
Phase : 1
Poles : 2
AIC rating : 10kA@240V
Connection : Bolt-On
Functions : LI - Long-Time and Instantaneous
Terminal Connection : Slotted Box Lug (Non-Reversible Line and Load)
Frame Size : 100A/QOU
MCM Size : Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
Breaker Type : Standard
Wire Size : AWG 12...AWG 2/0 aluminum/copper
